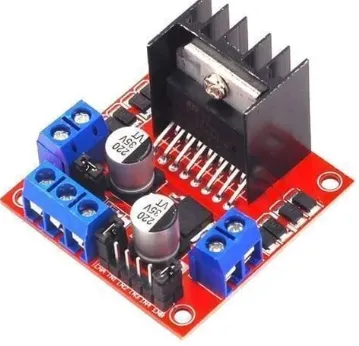

L298N Dual H-Bridge Motor Driver Module for Robotic Line Follower in Pakistan

Description

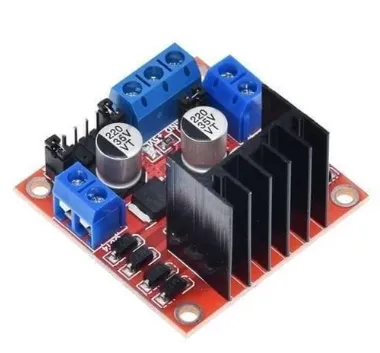

L298N Dual H-Bridge Motor Driver Module for Arduino & Robotics in Pakistan

Give your DIY robots the muscle they need with the L298N Dual H-Bridge Motor Driver Module. This high-power motor driver is the perfect bridge between your microcontroller and DC motors, allowing you to safely control speed and direction. Whether you are building a line-following robot, a micro mouse, or a robotic arm, this module is an essential component for mechatronics and engineering projects.

At One Tech Electronics, we provide authentic modules that feature the popular L298 motor driver IC and an onboard 5V regulator. This regulator can even supply power to an external circuit, like your Arduino, simplifying your wiring. It can control up to 4 DC motors unidirectionally, or 2 DC motors with full bidirectional and speed control.

The Magic of PWM (Pulse Width Modulation)

An H-Bridge is a circuit that can drive current in either polarity. But to control speed safely, we use Pulse Width Modulation (PWM). Imagine a motor’s brush as a water wheel, and electrons as the flowing water. If you apply a constant heavy voltage, the wheel spins violently and can damage the motor.

Instead, PWM hits the “water wheel” with electronic pulses at a constant flow. The longer the pulses, the faster the wheel turns. The shorter the pulses, the slower it turns. By using the L298N with PWM, your motors will last much longer and be far more reliable!

Key Features

• Dual H Bridge Driver: Drive up to 2 bidirectional DC motors or 4 unidirectional DC motors.
• Integrated 5V Power Regulator: Onboard regulator can power external microcontroller circuits directly.
• Current Sense: Features current sensing for each motor.
• Thermal Protection: Built-in heatsink for better performance and heat dissipation during heavy loads.
• Power-On LED Indicator: Easy visual confirmation that the board is receiving power.

Technical Specifications

• Driver Chip:                 L298N Dual H-Bridge
• Logical Voltage:          5V
• Drive Voltage:             5V to 35V DC
• Logical Current:        0 to 36mA
• Max Drive Current:  2A (MAX single bridge)
• Max Power:                  25W
• Dimensions:                43 x 43 x 26mm
• Weight:                           26g

Pin Configuration Guide

• Out 1 & Out 2:               Motor A lead out
• Out 3 & Out 4:              Motor B lead out
• GND:                                Ground
• 5V:                                     5V Logic Input
• EnA:                                  Enables PWM signal for Motor A
• In1 & In2:                        Input for Motor A direction
• In3 & In4:                        Input for Motor B direction
• EnB:                                  Enables PWM signal for Motor B

Package Includes

1 x L298N Motor Driver Module

Need Help with Your Project?

At One Tech Electronics, we do more than just sell components; we support innovation! If you need help wiring the L298N to your Arduino or writing PWM code, visit our YouTube channel for step-by-step tutorials and programming tips. We proudly support university students with their FYP components.
